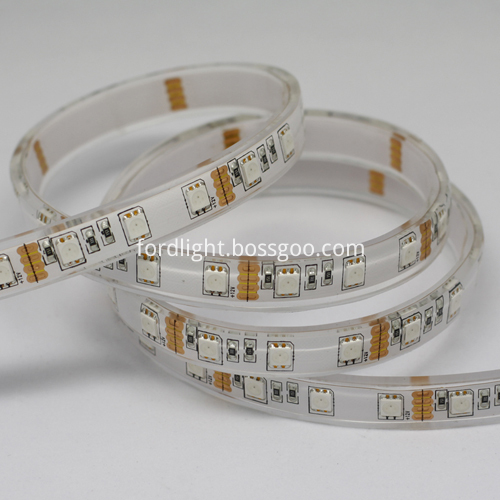

SMD 5050 RGB LED Strips Waterproof

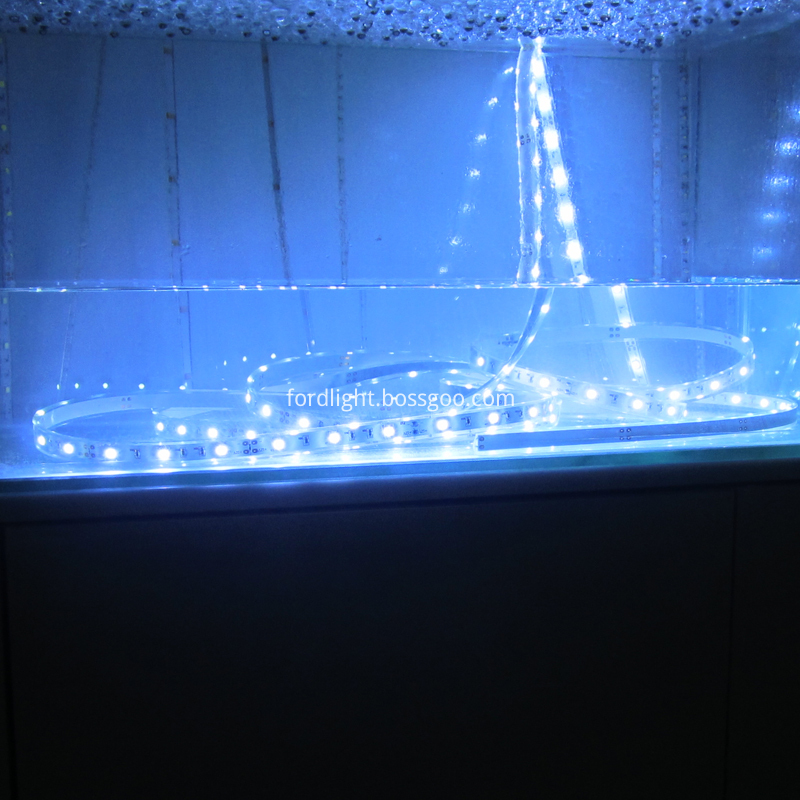

5050 High Output Waterproof LED Strip Light
This 300pcs high output SMD5050 Waterproof Led Strips is to satisfy customers seeking a high brightness of the lighting and brilliant colors effects , the product characterized by the use of a three-chip TOP 5050 SMD LED as a light source, there are bright, colorful, brightness uniform characteristics, for home decoration, hotels, an ideal light source cabinet lighting options.
Features:
Waterproof Material: Silicone hollow tube , Silicone glue and Silicone transparent waterproof connector.
Red/Green/Blue/Yellow/Pure White/Warm White available.
Used Super bright 5050 TOP SMD LEDs as lighting resources.
With accessories to help strip easy installation, strip continuous connection and strip connection to LED drivers.
3pcs LEDs per unit.
With 3M tape back,easy for installation.
This high output waterproof led strip wiht input Voltage DC12V or DC24V.
Anti-oxidation, anti-UV radiation and won`t change color after long time use.
High flexibility ,high transparence, flame-proof and environmental friendliness.
Silicone material offers good heat or cold resistance and is not easily broken.
With silicone transparence waterproof connector can easily connect and totally waterproof.
Application :
Cove lighting.
Architectural light for canopy,corridor,window,archway.
Backlight for edge lighting for signage.
DIY lights for home use.
Path and contour marking.
Decorative lights for holiday,event,show exhibition.
To cut and seal at one end, please follow the steps: A1 A2 A3 B1 B2
To cut and install waterproof connector at one end, please follow the steps: A1 A2 A3 C1 C2 C3 C4 C5
A1 : Cut the light strip at the mark "scissors" or by every 3 LED's.
A2: Screw to open the glue cap.
A3: Use the thrust (another side of glue cap ) to puncture the surface.
B1: Inject the silicon gel into the end cap without holes .
B2: Push the strip into the cap and let gel dry for 1 hour.
C1: Put the connector wire through the end cap holes.
C2: Solder the wire onto the PCB .
C3: After solder the two wires, push the strip into the end cap with wires carefully.
C4 : Inject the silicon glue at the end of strip and cap .
C5: Make sure end cap and strip are connected well and let gel dry for 1 hour.
Note:
1.Please make LED drivers compatible with 5050 high output led strip light before use LED strips;
2.To use 5050 high output led strips light 5M in serial, longer than 5M in parallel;
3.Before use,first check the power supply used in compliance with of the power requirements;
4.Each roll ask for independent power supply; not to use of multi-volume series use;
